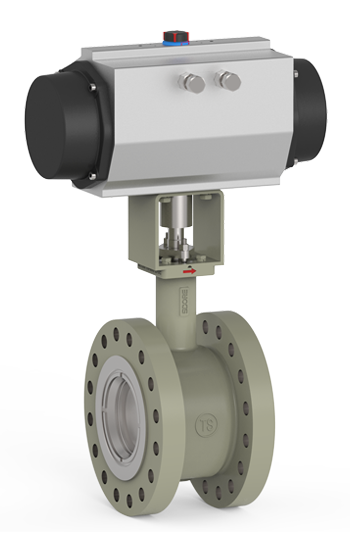

BE100/BE120 Eccentric Rotating Plug Valves

BE100 and BE120 series camflex rotary valves are segmented ball valve, which also have some features of ball valves. Compared with globe valves, this kind of valve is of compact, large capacity and wide rangeability, etc.. It is relatively economical for liquid with low pressure drop and large flow rate, and is applicable to control liquid with high viscosity or slurry, fiber and solid particles.

BE100 is of wafer type (with lugs hole) and BE120 is of flange type.

Specifications

Body Styles		BE100	BE120
Connections		Wafer Type	Flanged (RF) Type
Body Size		1”~18”	1”~18”
Body Rating		ANSI 150#~600#
Face to Face		ISA S75.04	ANSI B16.10
Fluid Temperature		-45~+600℃
Body Material		WCB,WC6,WC9,LCB,CF8,CF8M,CF3,CF3M,Duplex,Monel,Hastelloy,Inconel,Titanium,etc…
Disc Material		CF8M,CF3,CF3M,Duplex,Monel,Hastelloy,Inconel,Titanium,etc…
Disc Treatment		ENP or Stellited, Tungsten Carbide Coated, Tungsten Carbide Lined (≥10mm)
Flow Characteristics		Approximate Linear
Rangeability		Full Bore: 100:1, Reduced Bore: 15:1~50:1
Seat Material		Reinforced Teflon, A564-630/PH, A276-316/Stellite N0.6, A564-630/Tungsten Carbide Coated, A564-630/Tungsten Carbide Lined, A276-316/Tungsten Carbide Coated, A276-316/Tungsten Carbide Lined
Seat Leakage	Metal Seat	ANSI Class Ⅳ
	Soft Seat	ANSI Class Ⅵ
Actuator Combination		D100RA: Multi-spring Pneumatic Diaphragm Actuator P200RA: Pneumatic Cylinder Actuator
