D100LA Multi Spring Pneumatic Diaphragm

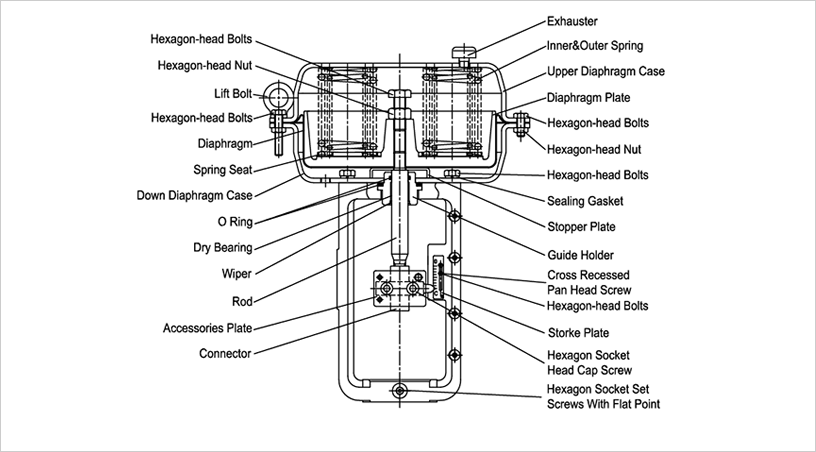

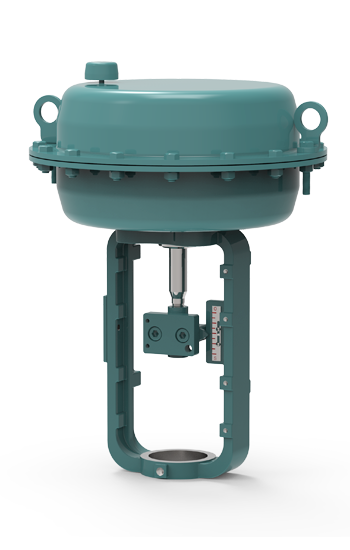

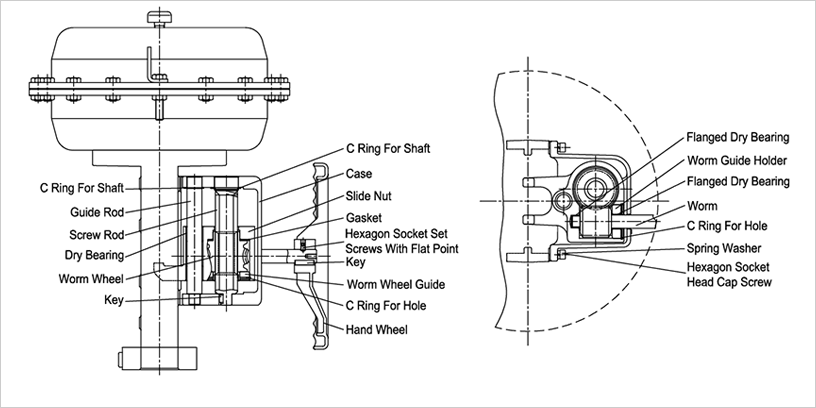

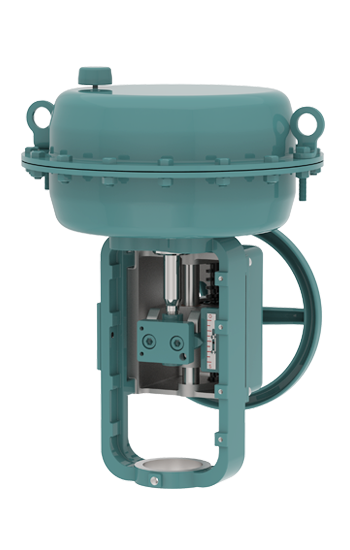

D100LA Pneumatic Diaphragm  Pneumatic diaphragm actuator of this series adopts multi-spring structure with compact, high performance and big thrust. The working principles areas follows: electricity or gas signal from controller will enter the diaphragm room after converted into air pressure by positioner to form push force to act on the diagram and make the push rod move. Meanwhile the spring is compressed until the acting force is balanced with counter-acting force to make the push rod reach preset position. Specifications Type Linear Stem Motion Type D122LA D127LA D135LA D14SLA D14LLA D15SLA D15LLA D16SLA D16LLA Actuator Size 220 270 350 450 550 650 Nominal Diaphragm Area (cm2) 188.82 314.33 555.88 956.83 1,548.82 2,236.31 Air Supply /Spring Range (KPa) 300/80~200, 340/120~300, 400/120~280 Max. Output (N) 2,266 3,772 6,671 11,482 18,586 26,836 Rated Stroke (mm) 20 30 40 90 110 110 Action Ditect Action (DA) or Reverse Action (RA) Environment Temp. Standard Type: -20~+70℃, Low Temp. Service: -50+40℃, High Temp. Service: 0~+100℃ Options Manual Handwheel, Limit Switch, Positioner, Airset, Solenoid Valve, etc... D100LA without Manual Handwheel D100LA with Manual Handwheel
