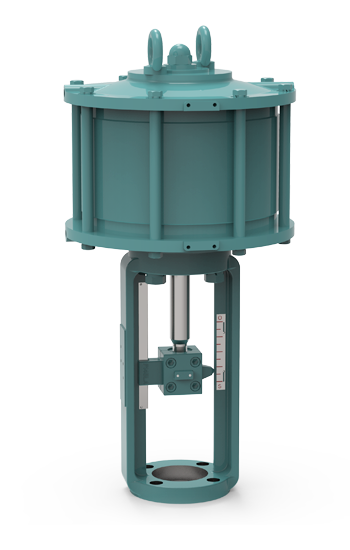

P100LA Pneumatic Double Action Cylinder

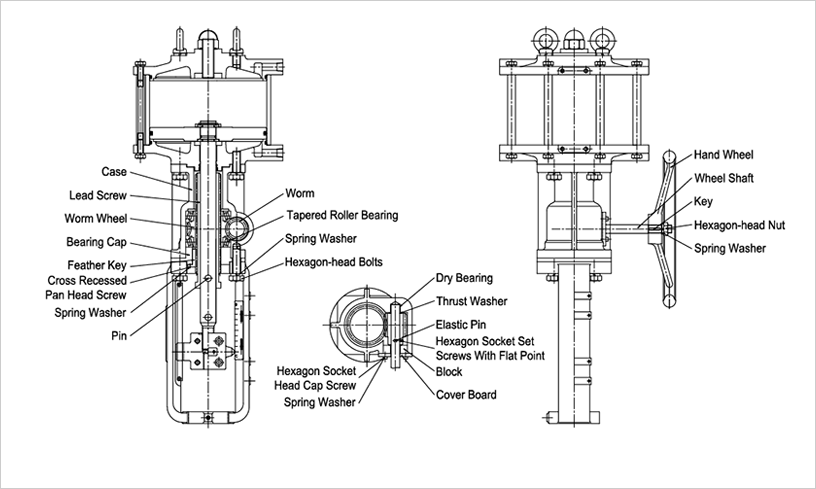

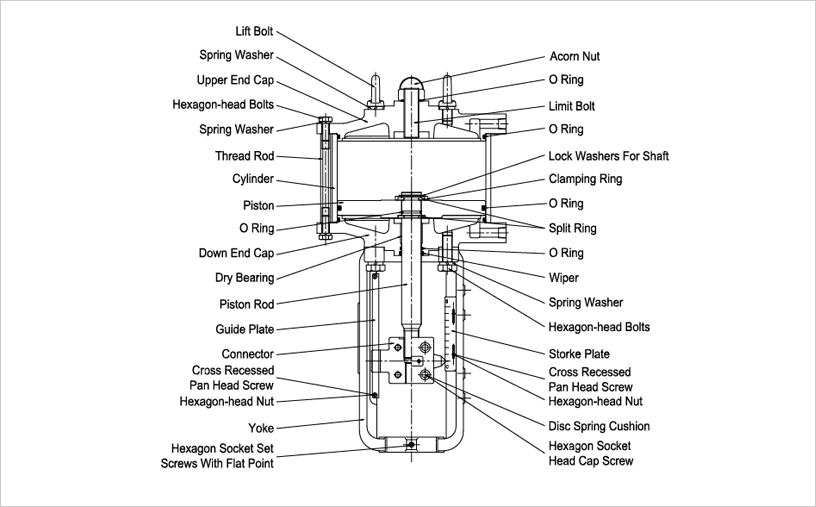

P100LA Pneumatic Piston Actuators This series provides double-acting pneumatic cylinder actuators actuators characterized by large output and high-performance. Combined with linear stem motion type control valves, including globe valves and gate valves, the actuators of this series are suited for modulating and on-off services. Uses with other linear motion devices are also good. Specifications Type P130LA P145LA P160LA Actuator Size 300 450 600 Max. Output @ 500KPa (N) 32,242 73,010 129,850 Max. Stroke (mm) 110 210 210 Air Supply (KPa) 300~500 Action Double Acting Environment Temp. Standard Type: -20~+70℃, Low Temp. Service: -50+40℃, High Temp. Service: 0~+100℃ Environment Temp. Manual Handwheel, Limit Switch, Positioner, Booster Relay, Airset, Solenoid Valve, etc... P100LA without Manual Handwheel P100LA with Manual Handwheel
